Impex GD-810 Manuale del Proprietario

NOTE: Please read all instructions carefully before using this product Table of Contents Safety Notice Hardware Identifier Assembly Instructio

Step 4 (See Diagram 4) A.) Connect two lower beams on a Frame-A (Blue) to the 4-hole Brackets (#3) on Frame-C. B.) Secure each hole with one M8 x 5/8

Step 5 (See Diagram 5) A.) You should have five Blue Frames (#1) left by now. B.) Connect the five Blue Frames (#1) horizontally to the opening holes

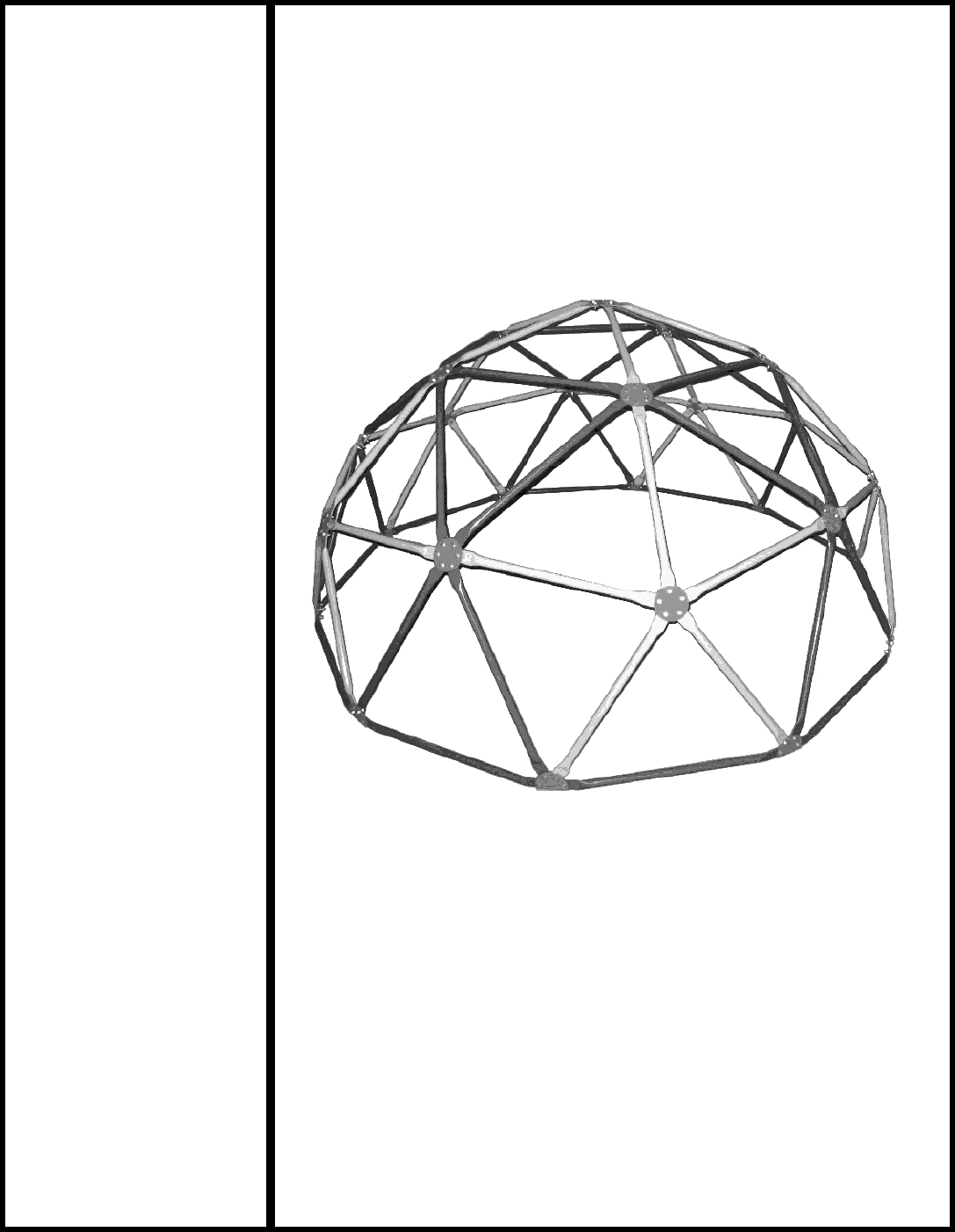

EXPLODED DIAGRAM 11

Parts list KEY NO. DESCRIPTION Q’ty 1 Blue Frame 35 2 Yellow Frame 30 3 4-hole Bracket 10 4 5-hole Bracket 6 5 6-hole Bracket

IMPEX® INC. LIMITED WARRANTY IMPEX INC ("IMPEX®") warrants this product to be free from defects in workmanship and material, under normal

TABLE OF CONTENTS BEFORE YOU BEGIN... 1 IMPORTANT SA

WARNING LABEL PLACEMENT The warning label shown here has been placed on the frame. If the label is missing or illegible, please call customer s

IMPORTANT SAFETY NOTICE This play ground equipment is built for optimum safety. However, certain precautions apply whenever you operate a piece of pl

CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS The U.S. Consumer Product Safety Commission (CPSC) estimates that about 100,000 play

HARDWARE IDENTIFIER 5

ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: One Adjustable Wrench and one Allen Wrench NOTE: It is strongly recommended two or more

Step 2 (See Diagram 2) A.) Attach five Yellow Frames (#2) to a 5-hole Bracket (#4). B.) Secure each Yellow Frame to the Bracket with one M8 x 5/8

Step 3 (See Diagram 3) A.) Connect a Blue Frame (#1) to a 4-hole Bracket (#3) and secure them with one M8 x 5/8” Allen Bolt (#6), Ø 5/8” Washer (#7
