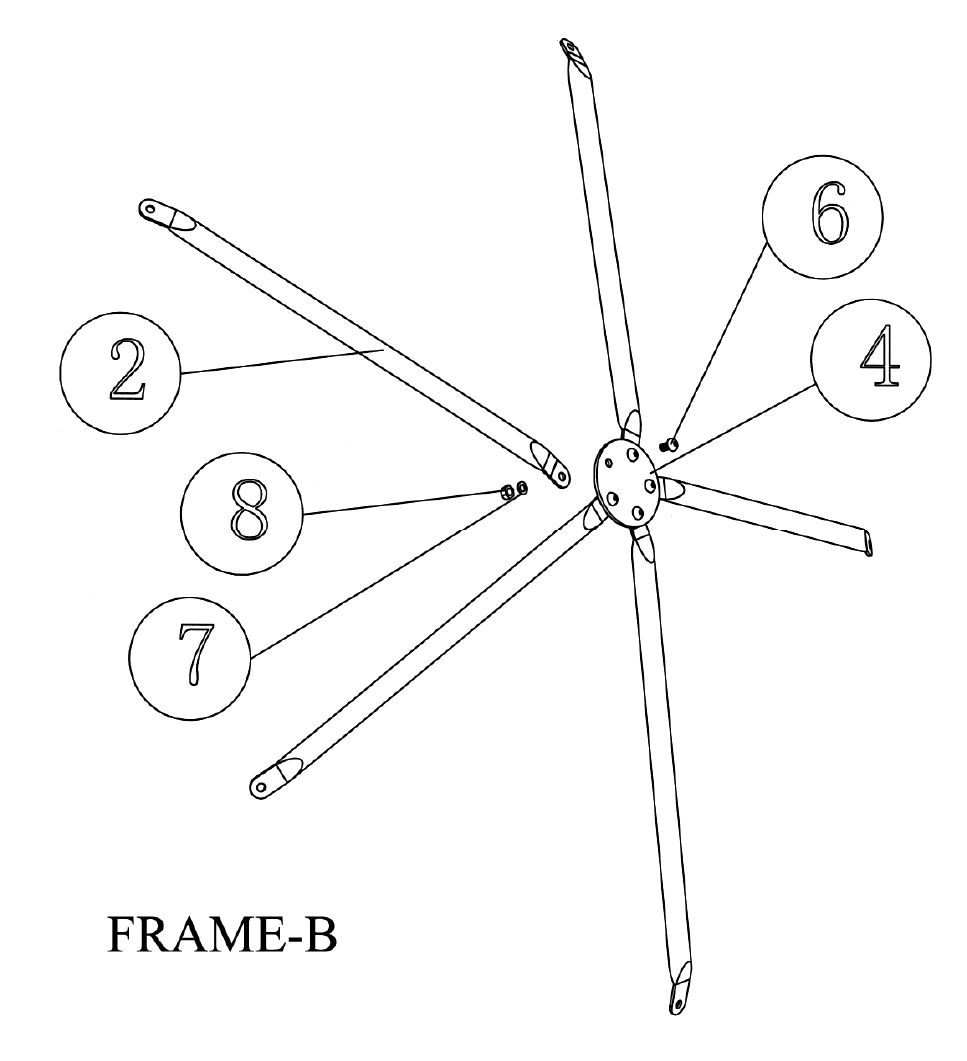

Step 2 (See Diagram 2)

A.) Attach five Yellow Frames (#2) to a 5-hole Bracket (#4).

B.) Secure each Yellow Frame to the Bracket with one M8 x 5/8” Allen Bolt (#6), Ø 5/8” Washer

(#7), and M8 Aircraft Nut (#8).

C.) Do not tighten the Nut and Bolt yet.

D.) Repeat Procedures A & B above to assemble five more Frame-B (Total six sets).

DIAGRAM 2
